U9815R Impulse Winding Tester

Pulse energy: Max.: 0.25 Joule
Pulse voltage: 100V~5000V, 10V steps,5%±10V
Inductance measuring range: ≥10uH
Sampling rate: max.100Msps, adjustable 10 levels
Determination method: Area, differential area, corona and differential phase
Number of high-voltage channels:

Buy

yg     yg

零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
数量
-
+
库存:
0
1
Details
Technical parameters
Order information
Instrument accessories
Optional accessories
Video data

Brief Introduction:

U9815R impulse winding tester adopts high stability & high-voltage impact power and thyristor module controlled high-voltage switching devices, which bring a substantial increase in the stability and reliability of the product. With advanced 32 bit CPU and high speed FPGA, 100Msps sampling rate and memory depth of 6500 bytes make the test more precise; the use of high speed testing technique make the maximum test speed up to 15 meas/sec. Layer short/ DC resistance two-in-one test greatly improves the test efficiency of testing coil products.

Features:

■ 65k color 7’’ TFT high definition display screen, selectable Chinese and English interfaces

■ Waveform sampling rate:100Msps; memory depth: 6500bytes

■ Max. Test speed: 15 meas/sec

■ Four waveform comparison methods: Area, differential area, corona and differential phase

■ Strong corona analysis and extraction function (several corona modes and corona display function) to excavate potential defective insulation of products

■ Excellent test repeatability to guarantee stable measurement

■ Instrument parameters automatic storage and boot-up file load function

■ Vertical exaggeration, horizontal zoom and movement of waveforms for detail observation

■ Sample average function, average processing of 32 standard waveforms

■ Automatic standard acquisition mode to select suitable sampling rate

■ Destructive testing bring the right test voltage for you

■ Fast test mode can make real-time change of impulse voltage and sampling rat

■ Imposed demagnetized impulse to ensure the conformity of the tested waveforms

■ 20000 pieces of historical measured data storage and discrimination statistics function; can be saved to the U-disk

■ Directly save the screen pictures (BMP, GIF, PNG) or waveform data to U-disk through SAVE key

■ System firmware upgrade through U-disk

■ Foot switch interface for easy and fast measurements

■ Handler、RS232C、USB Device、USB Host和GPIB(option)

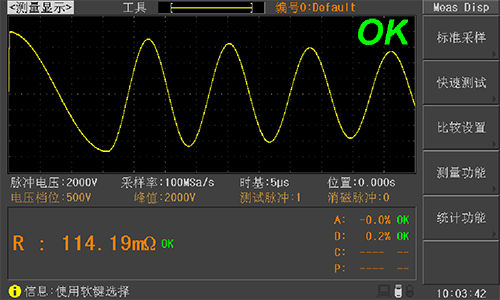

Measurement display interface:

Layer short waveform and DC resistance can be displayed in the measurement display interface simultaneously.



A

未找到相应参数组,请于后台属性模板中添加
Specifications
Model U9815R
DC resistance test range 0.1mΩ~20kΩ(four-wire measurement)
DC resistance test accuracy 0.1mΩ~200mΩ  ±(0.1% ± 0.5mΩ); 200mΩ~20kΩ  ±0.1%
Impulse voltage 100V~5000V, 10V step,5%±10V
Inductance test range ≥10uH
Impulse energy Max.: 0.25 Joule
Test speed Max.15meas/sec
Applied pulses Max. 32 of test pulse; max.8 of demagnetizing pulse
Input impedance 10M
Waveform acquisition Sampling rate: max.100Msps, adjustable 10 levels;Resolution: 8 Bits;Memory Depth:6500 bytes;Sample average:1-32
Comparison methods Area, differential area, corona and differential phase
Test repeated accuracy ±1%
Waveform measurement Voltage/Frequency/Time of the waveform
Trigger Mode Manual (including foot switch)/External/Internal/Bus
Display 800x480点65k color TFT, Waveform display range: 650x256, support 1.5 times magnifying display
Detection Output OK/NG display, LED / alarm
Test statistics Statistics function of measurement time and results, up to 20000 pieces
Memory Internal 150 groups (standard waveform data and test setup parameters)
U-disk 600groups (standard waveform data and test setup parameters)
Interface HANDLER(START,STOP,PASS,FAIL ,BUSY,EOC)
USB Slave,RS232C   IEEE488(option)
USB Host(support storage of BMP, GIF, PNG image files and firmware upgrade)
Power supply
Power supply 220V±10%  50Hz±5%
Power consumption ≤70VA
General conditions
Working environment Temperature 0℃ - 40℃
Humidity ≤75% R.H.
Weight 7.5Kg
Dimensio(WxHxD) 400mmx 132mmx350mm
