U9825 Impulse Winding Tester


Pulse voltage: 100V~5000V, 10V step,5%±10V
Inductance measuring range: ≥20uH
Pulse energy: Max.: 0.25 Joule
Sampling rate: 100Msps
Determination method: Area, differential area, corona and differential phase
Number of high-voltage channels: 2

keywords: LCR Meter Capacitance Meter

File:


product details


  • 产品描述
  • Technical parameters
  • Order information
  • Instrument accessories
  • Optional accessories
  • Video data
    • Commodity name: U9825 Impulse Winding Tester
    • Commodity ID: 1070418840832856064

    Pulse voltage: 100V~5000V, 10V step,5%±10V<BR> Inductance measuring range: ≥20uH<BR> Pulse energy: Max.: 0.25 Joule<BR> Sampling rate: 100Msps<BR> Determination method: Area, differential area, corona and differential phase<BR> Number of high-voltage channels: 2

    Brief Introduction:

    U9825/U9845/U9805X series impulse winding tester adopts high stability & high-voltage impact power and thyristor module controlled high-voltage switching devices, which bring a substantial increase in the stability and reliability of the product. With advanced 32 bit CPU and high speed FPGA, 100Msps sampling rate and memory depth of 6500 bytes make the test more precise; the use of high speed testing technique make the maximum test speed up to 15 meas/sec. Low to 0.5uH small inductance test function guarantee the excellent test repeatability in such small inductance test, which solve the problem of small inductance test.

    Features:

    ■ Low to 0.5uH small inductance test function

    ■ 65k color 7’’ TFT high definition display screen, selectable Chinese and English interfaces

    ■ Waveform sampling rate:200Msps; memory depth: 6500bytes

    ■ Max. Test speed: 15 meas/sec

    ■ Five waveform comparison methods: Area, differential area, corona, differential phase and waveform comparison

    ■ Strong corona analysis and extraction function (several corona modes and corona display function) to excavate potential defective insulation of products

    ■ Excellent test repeatability to guarantee stable measurement

    ■ Instrument parameters automatic storage and boot-up file load function

    ■ Vertical exaggeration, horizontal zoom and movement of waveforms for detail observation

    ■ Sample average function, average processing of 32 standard waveforms

    ■ Automatic standard acquisition mode to select suitable sampling rate

    ■ Destructive testing bring the right test voltage for you

    ■ Fast test mode can make real-time change of impulse voltage and sampling rate

    ■ Imposed demagnetized impulse to ensure the conformity of the tested waveforms

    ■ 20000 pieces of historical measured data storage and discrimination statistics function; can be saved to the U-disk

    ■ Directly save the screen pictures (BMP, GIF, PNG) or waveform data to U-disk through SAVE key

    ■ System firmware upgrade through U-disk

    ■ Foot switch interface for easy and fast measurements

    ■ Handler、RS232C、USB Device、USB Host和GPIB(option)

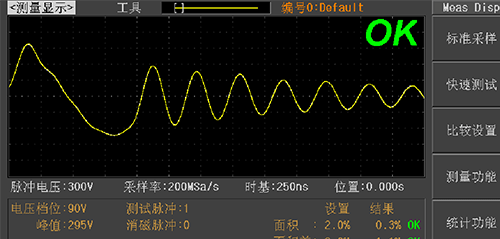

    Coil test for low inductance value:

    200Msps high-speed sampling rate and excellent test repeatability make it possible to test 0.5uH small inductance.



    A

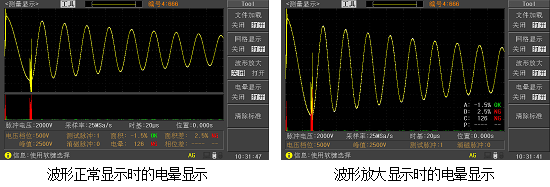

    Corona display function:

    Up to 200Msps sampling rate ensure precise extraction of corona information. The equipped corona display function make corona information and product performance clear and visualized.



    A

  • Specifications
    Model U9825 U9845 U9805X
    Channel number of HV 2 4 Customizable, 8-channel at most
    Impulse voltage 100V~5000V, 10V step,5%±10V
    Inductance test range ≥20uH
    Impulse energy Max.: 0.25 Joule
    Test speed Single-winding: Max.12 meas/sec,4-winding: Max.2 meas/sec
    Applied pulses Max. 32 of test pulse; max.8 of demagnetizing pulse
    Input impedance 10M
    Display 800x480 dot 65k color TFT,Waveform display range: 650x256, support 1.5 times magnifying display
    Waveform acquisition Sampling rate: max.100Msps, adjustable 10 levels;Resolution: 8 Bits;Memory Depth:6500 bytes;Sample average:1-32
    Comparison methods Area, differential area, corona and differential phase
    Test repeated accuracy ±1%
    Comparison test yes no
    Waveform measurement Voltage/Frequency/Time of the waveform
    Trigger Mode Manual (including foot switch)/External/Internal/Bus
    Detection Output OK/NG display, LED / alarm
    Test statistics Statistics function of measurement time and results, up to 20000 pieces
    Memory Internal 150 groups 120 groups 60 groups
    U-disk 600groups (standard waveform data and test setup parameters)
    HANDLER signal START,STOP,PASS,FAIL ,BUSY,EOC START,CH1~CH8, ALL,BUSY,EOC
    Interface USB Slave,RS232C,IEEE488(option); USB Host(support storage of BMP, GIF, PNG image files and firmware upgrade)
    Power supply
    Power supply 220V±10%  50Hz±5%
    Power consumption ≤50VA
    General conditions
    Working environment Temperature 0℃ - 40℃
    Humidity ≤75% R.H.
    Weight 8.0Kg
    Dimension (WxHxD) 400mmx 132mmx350mm
  • U9825 Impulse Winding Tester

  • U26022A High Voltage Test Lead U26023 Foot control switch
