U9915 Impulse winding tester

Pulse energy: Max.: 0.25 Joule
Pulse voltage: 25V~5000V，5V step，5%±10V
Inductance measuring range: ≥0.5uH
Sampling rate: max.200Msps, adjustable 11 levels
Determination method: Area, differential area, corona, differential phase and waveform comparison
Number of high-voltage channels:

keywords: LCR Meter Capacitance Meter

File：

Category:

Impulse Winding Tester

Hotline:

0086-519-85505199

Consultation

product details

产品描述
Technical parameters
Order information
Instrument accessories
Optional accessories
Video data

- Commodity name: U9915 Impulse winding tester
- Commodity ID: 1070438996904660992
Pulse energy: Max.: 0.25 Joule Pulse voltage: 25V~5000V，5V step，5%±10V Inductance measuring range: ≥0.5uH Sampling rate: max.200Msps, adjustable 11 levels Determination method: Area, differential area, corona, differential phase and waveform comparison Number of high-voltage channels:

Brief Introduction:

U991x series impulse winding tester adopts high stability & high-voltage impact power and thyristor module controlled high-voltage switching devices, which bring a substantial increase in the stability and reliability of the product. With advanced 32 bit CPU and high speed FPGA, 100Msps sampling rate and memory depth of 6500 bytes make the test more precise; the use of high speed testing technique make the maximum test speed up to 15 meas/sec. Low to 0.5uH small inductance test function guarantee the excellent test repeatability in such small inductance test, which solve the problem of small inductance test.

Features:

■ Low to 0.5uH small inductance test function

■ 65k color 7’’ TFT high definition display screen, selectable Chinese and English interfaces

■ Waveform sampling rate:200Msps; memory depth: 6500bytes

■ Max. Test speed: 15 meas/sec

■ Five waveform comparison methods: Area, differential area, corona, differential phase and waveform comparison

■ Strong corona analysis and extraction function (several corona modes and corona display function) to excavate potential defective insulation of products

■ Excellent test repeatability to guarantee stable measurement

■ Instrument parameters automatic storage and boot-up file load function

■ Vertical exaggeration, horizontal zoom and movement of waveforms for detail observation

■ Sample average function, average processing of 32 standard waveforms

■ Automatic standard acquisition mode to select suitable sampling rate

■ Destructive testing bring the right test voltage for you

■ Fast test mode can make real-time change of impulse voltage and sampling rate

■ Imposed demagnetized impulse to ensure the conformity of the tested waveforms

■ 20000 pieces of historical measured data storage and discrimination statistics function; can be saved to the U-disk

■ Directly save the screen pictures (BMP, GIF, PNG) or waveform data to U-disk through SAVE key

■ System firmware upgrade through U-disk

■ Foot switch interface for easy and fast measurements

■ Handler、RS232C、USB Device、USB Host和GPIB(option)

Coil test for low inductance value:

200Msps high-speed sampling rate and excellent test repeatability make it possible to test 0.5uH small inductance.

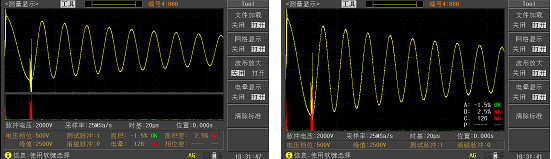

Corona display function:

Up to 200Msps sampling rate ensure precise extraction of corona information. The equipped corona display function make corona information and product performance clear and visualized.

Specifications
Model			U9912	U9915
Impulse voltage			25V~2000V， 5V step，5%±10V	25V~5000V， 5V step，5%±10V
Inductance test range			≥0.5uH
Impulse energy			Max.: 0.04 Joule	Max.: 0.25 Joule
Test speed			Max.15meas/sec
Applied pulses			Max. 32 of test pulse; max.8 of demagnetizing pulse
Input impedance			10M
Display			800x480 dot 65k color TFT, Waveform display range: 650x256, support 1.5 times magnifying display
Waveform acquisition			Sampling rate: max.200Msps, adjustable 11 levels ; Resolution: 8 Bits; Memory Depth:6500 bytes ; Sample average:1-32
Comparison methods			Area, differential area, corona, differential phase and waveform comparison
Test repeated accuracy			±1%
Waveform measurement			Voltage/Frequency/Time of the waveform
Trigger Mode			Manual (including foot switch)/External/Internal/Bus
Detection Output			OK/NG display, LED / alarm
Test statistics			Statistics function of measurement time and results, up to 20000 pieces
Memory		Internal	150 groups (standard waveform data and test setup parameters)
		U-disk	600groups (standard waveform data and test setup parameters)
Interface			HANDLER（START,STOP,PASS,FAIL ,BUSY,EOC） USB Slave，RS232C IEEE488（option） USB Host（support storage of BMP, GIF, PNG image files and firmware upgrade）
Power supply
Power supply			220V±10% 50Hz±5%
Power consumption			≤50VA
General conditions
Working environment	Temperature		0℃ - 40℃
	Humidity		≤75% R.H.
Weight			7.5Kg
Dimension(WxHxD)			400mmx 132mmx350mm
