U2817 Precision LCR Meter

Test frequency: 50Hz – 100kHz, 16 typical frequency points
Basic accuracy: 0.05%
Test level: 10mV – 2V，resolution：1mV
Test speed: Fast: 65, Med: 10, Slow: 5 (meas / sec.)
Internal bias: 0V/1.5V/2.0V/4.0V/5.0
Output Impedance: 10Ω, 30Ω, 100Ω

Buy

yg     yg

零售价
0.0
元
市场价
0.0
元
浏览量:
1000
产品编号
Category
LCR Meter
数量
-
+
库存:
0
1
Details
Technical parameters
Order information
Instrument accessories
Optional accessories
Video data

Brief Introduction:

U2817 Series Precision LCR Meter is a new generation of impedance test equipment with high accuracy, wide measurement range and six digits resolution. Being possessed with test frequency up to 100kHz, test voltage of 10mV-2V, built-in typical DC bias and -10V-10V DC voltage source output, it can meet all requirements for measuring components and materials and provide guarantees for production line quality assurance, incoming inspection and laboratory precision measurements.

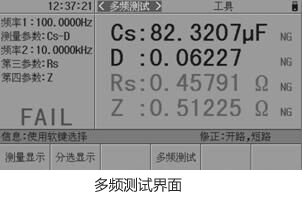

The provided multi-frequency test function can achieve multi-point frequency test in one work station and make it more compact and efficient for the composition of capacitor test system and significantly reduce the system design and production costs.





Features:

■Simultaneously display of four different parameters with flexible combinations

■ High speed and efficiency measurement: Max. 65 meas / sec (with display),

■ Built typical bias 0V / 1.5V / 2.0V / 4.0V / 5.0V

■Support DC source output: continuously adjustable independent voltage source -10V ~ 10V, resolution of 2.5mV , low noise (only U2817A is optional)

■ Auto DUT trigger function: the DUT can be measured once be trigger and the measurement results and discrimination will be displayed.

■ Powerful list sweep function: Mixed scanning of various excitation source and display of different parameters

■ New graphical scanning functions: frequency / level / bias / DC source make nuanced analysis of elements(only U2817A optional)

■ Complete user correction function: up to 32 dot frequency correction

■ Rich communication interfaces: RS232C / USB-CDC / USB-TMC / HANDLER / GPIB

■ Multiple USB storage modes: CSV and TXT format for storing test data, BMP, PNG, GIF formats for stored on-screen images, U disk storage / recall setup files, U disk firmware upgrade

■ Storage / recall of Parameters: real-time storage of all parameters without losing after shutdown; supporting internal storage of 100 groups, external storage and recalling of 500 groups

General Specifications :

Temperature & Humidity 0°C－40°C, ≤90%RH
Power Requirements Voltage 99V - 242V
Frequency 47.5Hz－63Hz
Power ≤ 20 VA
Dimension(W×H×D) 350mm×120mm×360mm
Weight approx. 3.5kg
未找到相应参数组，请于后台属性模板中添加
Measurement function
Test parameter |Z|,C,L,R, X, |Y|,B,G,D,Q,θ
Basic Accuracy 0.05%
Measuring speed Fast: 65, Med: 10, Slow: 5 (meas / sec.)
Equivalent circuit Series and Parallel
Ranging mode Auto, Hold
Trigger mode Internal, Manual, Auto, External and Bus
Correction Open / short / load, 32 dot frequency correction (no in U2817)
Graphic Scanning (Optional) Frequency, level, bias voltage / current, DC source (Only U2817A optional)
List sweep 10 point frequency, level, bias voltage / current, DC source (no in U2817)
Monitor 480 * 272, 5-inch TFT color screen
Memory Internal:100 groups, External:500 groups(U-disk)
Test signal
Test frequency U2817A 50Hz – 100kHz, resolution：1mHz
U2817 50Hz – 100kHz, 16 typical frequency points
Output Impedance 10Ω, 30Ω, 100Ω
Test level 10mV – 2V; resolution:1mV
Internal DC bias source U2817A -5V-+5V; resolution: 1mV
U2817 0V/1.5V/2.0V/4.0V/5.0
Built-in DC source (Option） -10V - +10V, resolution:2.5mV
Measurement display range
|Z|, R,X 0.01mΩ - 99.9999MΩ
|Y|, G, B 0.0001uS – 999.999S
C 0.00001pF – 99.9999mF
L 0.00001µH – 99.9999kH
D 0.00001 - 9.99999
θ(Deg) -179.9° – 179.9°
θ(Rad) -3.14159 – 3.14159
Q 0.01 - 99999.9
Δ% -999.99% - 999.99%
Compare and interfaces
Comparators 10 bins,BIN0 – BIN9，NG,AUX, PASS/FAIL LED display
Interface RS232C/USB-HOST/USB-CDC/ USB-TMC/HANDLER/GPIB（Options）

U2817 Precision LCR Meter

U26005 Four-terminal test fixture U26011 Four-terminal Kelvin test cable U26010 Gilded shorting plate

U26006 轴向元件测试夹具(与U26005配合使用)

U26008 SMD 元件测试夹具

U26009 SMD 测试钳

U10501 1A可编程直流偏置电流源

U10502 100mA可编程直流偏置电流源

U10503 可编程直流电压源, -10V - +10V

U10301 GPIB接口

U10201 数据采集软件
